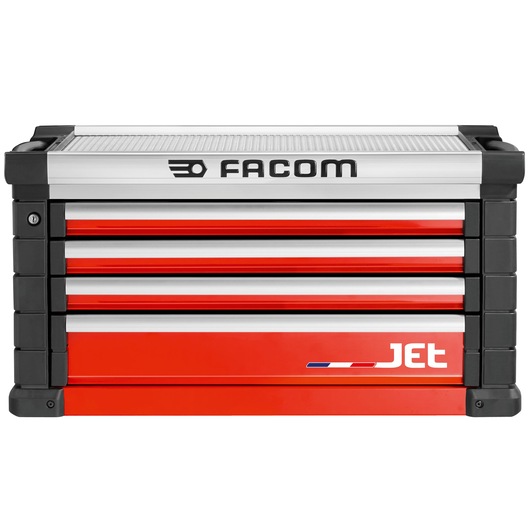

Top Chest, 4 Drawers, L 759 x H 421 mm, 4 Modules Per Drawer
JET.C4M4A
Top Chest, 4 Drawers, L 759 x H 421 mm, 4 Modules Per Drawer
- 4 drawers chest = 16 modules distributed in the 60 and 130 mm drawers
- 3 drawers height 60 mm = 12 modules
- 1 drawer height 130 mm = 4 modules
Additional Features
- The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
- Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 25/30 kg
- The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
- Total load capacity of the drawers: 105 kg
- Total storage capacity: 100 litres
- Usable drawer dimensions: L 759 x D 421 x H 60/130 mm
- Can be fitted with the JET2.15 and JET2.16 removable partitions, not supplied
- To be used alone or together with a JET.M4A rolling cabinet
- Supplied with the link kit for easy and secured mounting of the assembly
- Can be turned in a mobile version with the wheel set JET.C4MOBILEKIT with handle and 4 wheels
- Worktop: Extra large work surface, usable area 797 x 461 mm, 0.37m²
- High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 600 kg
- Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
- The installation of accessories is fast and secure
- A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
- Dedicated slots for 8 screwdrivers
- Integrated ledges prevent tools from falling out while moving
- Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
- Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
- Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
- Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
Specifications
|
100% Opening of Drawers
|
Yes
|
|
Body Metal Thickness [Metric]
|
1 mm
|
|
Drawer Capacity [Metric]
|
105 Kg
|
|
Drawer Length [Metric]
|
759 mm
|
|
Drawers Total Weight Capacity [Metric]
|
105 Kg
|
|
Self-Closing Slides
|
Yes
|
|
Type of Lock
|
Key
|
|
Available Accessories
|
Bottle Holder
|
|
Number of Fixed Wheels without Brake
|
1
|
|
Slides Material
|
Metal
|
|
Drawer Height [Metric]
|
60-130 mm
|
|
Drawer Mat
|
No
|
|
Product Height [Metric]
|
500 mm
|
|
Product Weight [Metric]
|
51 Kg
|
|
360' Rotation Capacity
|
No
|
|
Additional Top Chest Can be Added
|
Yes
|
|
Drawer Depth [Metric]
|
421 mm
|
|
Maximum Worktop Load [Metric]
|
600 Kg
|
|
Tilting Handle
|
No
|
|
Number of Drawers
|
4
|
|
Wheels with Brake
|
Yes
|
|
Material of Drawer Corner Protectors
|
Soft Plastic
|
|
Possibility of Accessorization
|
Yes
|
|
Wheel Diameter [Metric]
|
125 mm
|
|
Worktop with Integrated Handles
|
Yes
|
|
Type of Side Handle
|
Plastic
|
|
Drawer Separators
|
Yes
|
|
Locking System
|
Central
|
|
Number of Drawer Separators
|
16
|
|
Number of Fixed Wheels with Brake
|
1
|
|
Number of Wheels
|
0
|
|
Bumper Effect
|
Yes
|
|
Material of Box Corner Protectors
|
Hard Plastic
|
|
Number of Handles
|
2
|
|
Worksurface Can Receive a Vice
|
No
|
|
Color
|
Red 3020
|
|
Anti-tip System - One Drawer At A Time
|
No
|
|
Product Length [Metric]
|
1004 mm
|
|
Secure Closing System - Safety Hook
|
Yes
|
|
Static Overall Weight Capacity [Metric]
|
600 Kg
|
|
Surface Treatment
|
Chrome
|
|
Worksurface Can Receive Accessories
|
No
|
|
Worktop Material
|
Aluminum
|
Support
Warranty
- 5 Year Guarantee*
If this product becomes defective due to faulty materials or workmanship within 5 years from the date of purchase, we guarantee to repair or replace it free of charge.
*Terms & conditions apply.
